Site surveying is the controlled process of measuring land, structures and reference points so a construction team can design accurately, set out the works in the correct position and verify what has been built. A reliable survey converts physical conditions into dependable coordinates, levels, drawings and records. It reduces uncertainty before excavation begins and provides an objective basis for checking alignment, elevation and dimensions throughout the project.
Table of Contents
Although surveying often appears to be a short preliminary activity, its information influences earthworks, foundations, utilities, structural grids, drainage and final handover. A small error in a benchmark or grid line can be repeated across several trades. The practical goal is not simply to collect many points. It is to collect the right points, to the required accuracy, in a coordinate system everyone understands, with enough checks to prove that the data can be trusted.
What does site surveying include?
A construction survey normally combines several related tasks. The exact scope depends on the project, design stage and accuracy required. The survey brief should define the site boundary, features to capture, control system, tolerances, deliverable format and responsibility for approving the results.
- Reconnaissance: reviewing drawings, boundaries, access constraints and visible site conditions.
- Control survey: establishing protected horizontal and vertical reference points.
- Topographic survey: recording ground levels, structures, roads, walls, drainage and other relevant features.
- Utility survey: locating visible and, where required, buried services using appropriate records and detection methods.
- Setting out: transferring design coordinates, axes, offsets and elevations to the site.
- As-built survey: measuring completed work to document its actual location, dimensions and levels.
The RICS standard for measured surveys emphasizes project information, survey accuracy, control, coordinate grids, datums and clearly specified deliverables. Accuracy must be selected for the intended use rather than assumed.
Site surveying methods used in construction
Topographic and level surveys
A topographic survey creates a three-dimensional picture of the existing site. Spot levels, break lines and contours describe the terrain, while coded points identify features such as kerbs, chambers, fences and buildings. A level survey focuses on height differences and benchmarks. These results support grading, drainage design, cut-and-fill calculations and accessible routes.
Traverse and control networks
A traverse links a series of measured stations. Closed traverses or networks allow the surveyor to calculate misclosure and check whether observations are consistent. Control points should be stable, safely accessible and located where construction activity will not disturb them. At least one independent check is needed before control is released for setting out.
GNSS surveying
Global navigation satellite systems can establish coordinates efficiently in suitable open conditions. Performance can be affected by obstructions, reflections, satellite geometry and correction availability. GNSS results should be verified against known control, especially when a point will govern structural work. It is valuable, but it does not remove the need for field judgment or quality control.
Total station surveying

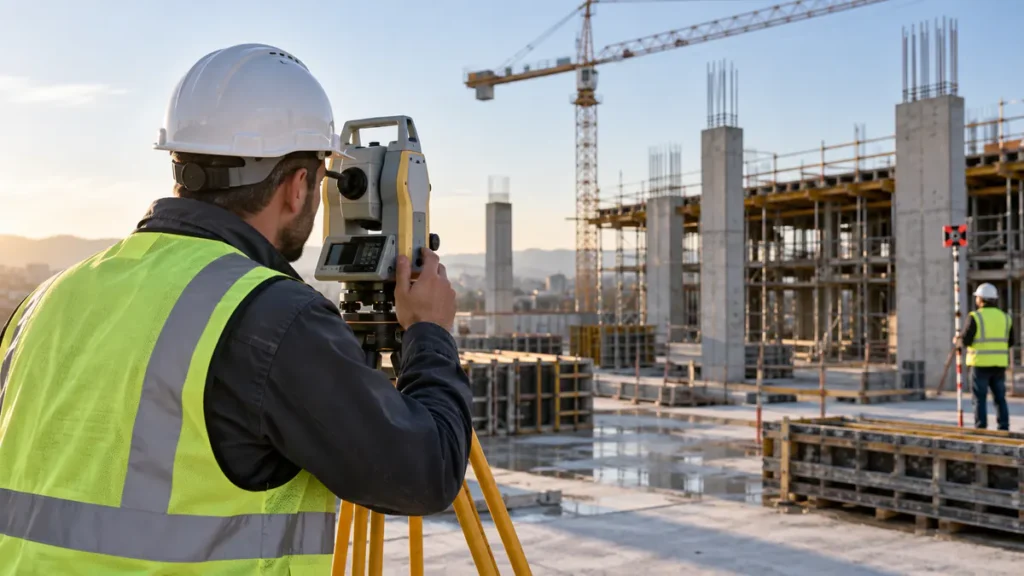

A total station measures angles and distances and calculates point coordinates. It is commonly used for structural grids, column positions, facade lines and detailed as-built work. Robotic instruments can improve productivity, but setup, centering, orientation and target height remain critical. A wrong prism height or backsight can create a systematic error even when the screen displays precise numbers.
Laser scanning and photogrammetry
Laser scanners collect dense point clouds useful for complex geometry, existing buildings and progress records. Photogrammetry derives measurements from overlapping images captured from the ground or an approved aerial platform. Both methods can produce excellent context, but the data must be tied to verified control and processed for a defined purpose. A visually impressive model is not automatically survey-grade.
Essential site survey equipment
| Equipment | Typical use | Key quality check |
|---|---|---|
| Total station | Coordinates, angles, distances and setting out | Calibration, centering, orientation and target height |
| Digital or automatic level | Benchmarks and precise elevation transfer | Two-peg check and balanced sight lengths |
| GNSS receiver | Control and open-site positioning | Fix quality, coordinate system and independent check |
| Laser scanner | Dense existing-condition and as-built capture | Registration residuals and control targets |
| Prism, staff and tripod | Supporting observations | Stable setup, correct constants and sound condition |
Equipment selection should follow the required tolerance and environment. A tape may be adequate for a noncritical internal check, while structural control may demand calibrated instruments and redundant observations. Before mobilization, confirm calibration status, batteries, storage capacity, communication settings, personal protective equipment and a secure backup method.
How to plan a site surveying workflow
- Define the decision: state how the information will be used and the required accuracy.
- Review the design basis: confirm revisions, units, coordinate system, datum and benchmarks.
- Walk the site: identify access, traffic, excavation edges, overhead hazards and suitable control locations.
- Establish and verify control: observe the network, calculate closure and protect reference points.
- Collect coded data: use consistent feature codes and field notes.
- Run independent checks: reobserve critical points, close level runs and compare known distances.
- Process transparently: investigate residuals and outliers instead of hiding exceptions.
- Issue controlled deliverables: show revision, date, system, units, accuracy and limitations.
This workflow should be coordinated with the wider stages of building construction. Survey hold points are most effective before work becomes concealed, such as before blinding covers formation levels or backfilling hides utilities.
Setting out buildings without transferring errors
Setting out begins by checking that current design information uses the same origin, rotation and datum as the site control. The surveyor marks primary axes or offsets that will survive excavation and formwork. Secondary points are derived from those references. Critical dimensions should be checked against both coordinates and drawing dimensions because a perfectly set-out coordinate can still reflect an incorrect or superseded file.
Use offsets where direct marks will be destroyed, and record how to reconstruct each line. Levels should be transferred from a verified benchmark rather than a convenient temporary mark of unknown origin. After formwork, anchors or sleeves are positioned, check them again before the work is fixed permanently.
Field quality-control checklist
- Confirm the latest approved drawings, model and survey instruction.
- Check units, grid orientation, datum and projection settings.
- Inspect instrument, tripod, prism pole and staff before use.
- Record weather and visibility when they may affect observations.
- Verify the setup with a known point and an independent check point.
- Keep raw observations, field notes, photographs and processing reports.
- Mark points clearly and protect control from traffic and earthworks.
- Report discrepancies immediately; do not redesign work in the field.
- Back up data before leaving the site.
Common site surveying mistakes
Frequent problems include working from an old drawing, mixing local and global coordinates, using the wrong units, accepting a single benchmark without verification and omitting target-height changes. Other failures arise when control monuments move, descriptions are vague or as-built surveys are postponed until elements are hidden. Technology cannot compensate for weak procedures.
Responsibility must be clear. The designer defines geometry and tolerances; the surveyor measures and sets out; the construction team protects marks and requests checks; and the responsible engineer accepts deviations or corrective action. A documented request-for-information process prevents informal geometric changes.
Frequently asked questions about site surveying
When should a site survey be completed?
An initial survey should be completed before detailed design or major site work. Further surveys are normally needed for control, setting out, concealed services, progress verification and final as-built records.
What is the difference between a topographic survey and setting out?
A topographic survey measures existing conditions and converts them into drawings or models. Setting out performs the reverse operation by transferring approved design positions and levels onto the physical site.
How accurate should site surveying be?
There is no universal accuracy for every task. The specification should relate accuracy to the intended use, project tolerance, measurement method and consequences of error. Structural grids normally require tighter control than landscape features.
Is GNSS enough for all construction surveys?
No. GNSS is efficient in suitable conditions, but obstructions and other factors can affect results. Total stations, levels, scanners or combined methods may be better for precise, indoor or obstructed work.
What should an as-built survey show?
It should show the actual position, elevation and relevant dimensions of completed elements, together with the coordinate system, date, revision, accuracy and limitations. Concealed work should be surveyed before it is covered.
For broader measurement terminology, consult the ISO surveying and geospatial standards catalogue.
Conclusion
Effective site surveying is a chain of controlled decisions: define the purpose, establish verified control, choose suitable equipment, observe with redundancy, document limitations and check critical work before it becomes permanent. When survey records are integrated with design coordination and construction inspection, they reduce rework and create a trustworthy record of the finished asset. Explore Aloda Construction Company services or contact the project team.
